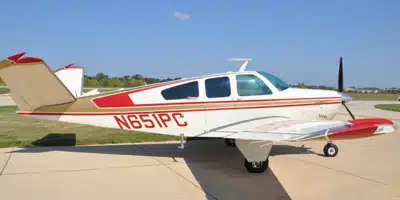

Beech V35 Bonanza

The Beech Bonanza V35 was manufactured from 1966 to 1967, serial numbers D7977 through D8598, therefore, 543 Model V35 Bonanzas were produced.

It is a single-engine, piston aircraft configured as a cantilever low-wing aircraft with a V-tail. Distinguishing features are: retractable landing gear,  variable pitch propeller. Model V35 Bonanza seats up to 5 passengers and 1 pilot.



Specifications



Exterior Dimensions

Wing span: 33 ft 6 in
Length: 26 ft 5 in
Height: 7 ft 7 in

Weights

Max TO weight: 3,400 lb
Empty Weight:  1,915 lbs
Maximum Payload: 1,459
Fuel capacity: 50 U.S. gallons (44 usable) optional 80 gallons (74 usable)

Engine

Manufacturer: Continental Motors
Model: IO-520B
Horsepower: 285 hp
Overhaul (HT): 1700hr TBO or 12 years

Standard Avionics

Digital Nav/Coms
2-axis autopilot
GS, DME, ADF
ADS-B In/Out



Performance

Horsepower: 285.00 Gross Weight: 3,300
Top Speed: 184 Empty Weight: 1,915
Cruise Speed: 177 Fuel Capacity: 50
Stall Speed (dirty): 55 Range: 543

Rate of Climb: 1,136 Rate of Climb (One Engine):
Service Ceiling: 17,500 Ceiling (One Engine):

Takeoff Landing
Ground Roll: 965 Ground Roll 647
Takeoff Roll Over 50 ft: 1,320 Landing Roll Over 50 ft: 1,177





History



Beech V35 Bonanza (1966-1967) Serial Numbers D-7977 through D-8598

Basically an S35 with higher takeoff weight, single-piece windshield. Beech introduced the Model V35 Bonanza in 1966, powered with the 285 hp Continental IO-520-B that gave a maximum speed of at sea level. Gross weight was 3400. There were few changes from the Model S35 Bonanza, the most salient being a one-piece windshield. Price was $32,500.



Distinguishing Features and Equipment



A one-piece windshield (with no center strip) was made standard and improved visibility considerably in the V35. A ventilation inlet scoop between stabilators improved cabin ventilation



Find all Beech Bonanza 35 for sale now!



This article uses material from this Wikipedia article, which is released under the Creative Commons Attribution-Share-Alike License 3.0.
